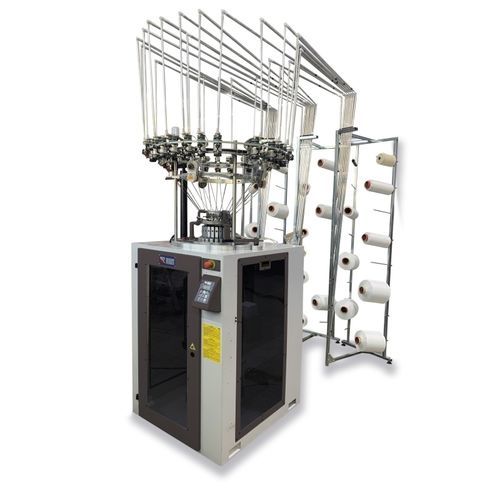

Circular knitting machine PROTEX 200 J

high-speedfor the food industryindustrial

High-speed circular rib knitting machine, for the production of single knit tubular fabrics. Cylinder diameter: from 4” up to 10” (according model) . Number of feeders: from 16 up to 40 (according model). Gauge and quantity of needles: according sample. • Working system by means of latch needles. • Balanced fabric collection using two roll take down system with precision fabric rollup. • Variable speed control with soft start, soft stop and creep. • Automatic high capacity lubrication system, including reservoir and security valve. Adjustable drip oil using electronic control. • Electronic stop motion in case of yarn breakage. • Electronic stop motion in case of needle breakage. • Needle breakage electrical stopping device. • Preset counter including proximity sensor. • Multi-directional cylinder and dial lint removal system, with adjustable interval air-timer, air regulators and direction adjustable air nozzles. • Multi-directional upper level lint removal system by a single fan. • Storage feeder system with input, output, stop motions, tensioning and knot catcher. • Full side creel • Lycra or rubber feed system with single drive pulley and stop motion.
