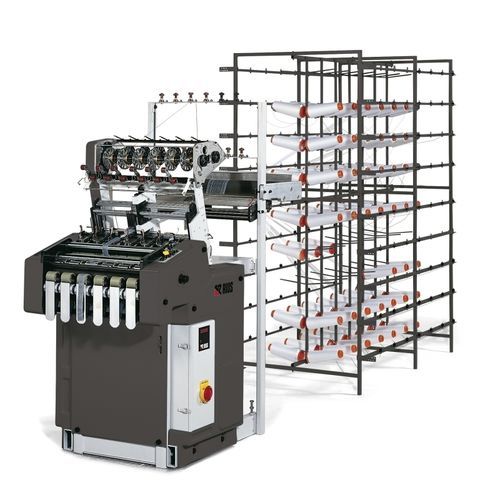

High-speed loom KNITRAMA

needle

High-speed automatic needle loom for standard weaving tapes. Number of tapes to produce simultaneously: 2 / 4 / 6 / 8 / 10 Reed width: 30 / 45 / 65 / 210 mm. Tape maximum width: 25 / 40 / 60 / 200 mm. Equipment supplied: • Number of heald frames: 12 (it can be supplied till 16, on demand) • Traction of the heald frames: by link chain. • Pick repeat till 48 • Weft feeding by feeding plates. • Retention weft thread at one edge. • Weft density change by gear from 3,5 up to 36,7 picks/cm • Electronic and automatic stop motion in case of weft yarn breakage by individualized system. • Electronic and automatic stop motion in case of warp yarn breakage. • Tape dragging system through a steel cylinder. • Advancing system by impulses. • Start, stop and jogging buttons • Indicator lights for yarn breakage. • Motor of 1.5 H.P.1.000 r.p.m. 220/380V 50/60HZ 3PH
