Drainage trencher RIV555
wheeled

drainage trencher
drainage trencher
drainage trencher
drainage trencher
Add to favorites
Compare this product


Characteristics

Type
drainage
Locomotion
wheeled

Description

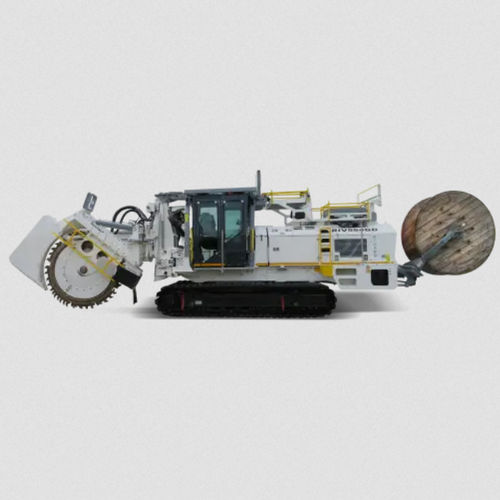

The RIV555 carrier is equipped with a powerful 550 hp VOLVO engine and can be fitted with different tools to carry out macro-trenching depending on the wheel model chosen: 3 models available. Several additional options are available to meet the requirements of various work sites such as road drainage, water networks, low and medium pressure gas networks, low, high and very high voltage electricity networks (HTA and HTB), CCTV, public lighting or telecommunication. RIV555 : Carrier RIV555 Engine VOLVO 550hp Fuel tank 630l Hydraulic tank 325l Ad blue tank 70l Total mass of the set (without weights) : 30 600kg Tool movements : Offset: 910mm Pivot : +/- 18°. Tilt : Double frame +/- 7,5°, wheel +/- 13°. Working dimensions: With TC1755 : 14 600 x 2 750 x 4 300 With TR202XLT : 13 200 x 2 550 x 4 350 With TR250T : 13 200 x 2 550 x 4 350 With TR250XLT : 13 200 x 2 550 x 4 350 Dimensions of transport equipment : With TC1755 : 12 000 x 2 750 x 3 550 With TR202XLT : 11 600 x 2 550 x 3 550 With TR250T : 11 600 x 2 550 x 3 550 With TR250XLT: 11,600 x 2,550 x 3,550 Trenching speed : Slow (working) 0 to 750 m/h Medium (working) 0 to 1,250 m/h Fast (transport) 0 to 2,000 m/h

Catalogs

No catalogs are available for this product.

See all of RIVARD‘s catalogs
