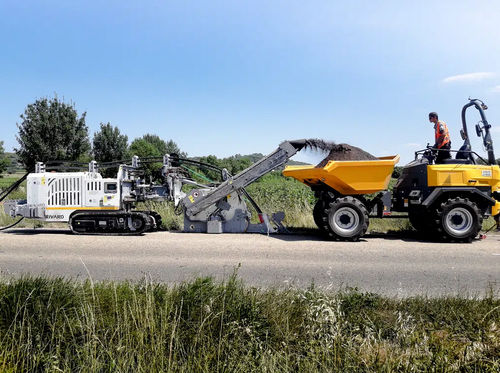

Rockwheel trencher RIVCITY

trackedwalk-behind

The RIVCITY is a real small trencher on tracks, very compact, allowing it to operate in confined and restricted areas with a low impact on traffic and pedestrian traffic. Thanks to its 2 wheels : TRCITY, TR80T, this trencher is also very versatile for the realization of micro or mini trenches with mechanized installation of all types of networks. RIVCITY : RIVCITY carrier 122hp DEUTZ Fuel tank 130l Hydraulic tank 110l Ad blue tank 10l Offset 250 mm foot of track D or G Working dimensions : with TR80T : 7m x 1m x 2m / with TRCITY : 8m x 1m x 2m Transport dimensions : with TR80T : 7,4m x 1m x 2m / with TRCITY : 8,1m x 1m x 2,6m Carrier speed : Slow (work) 0 to 750 m/h Medium (working) 0 to 1 500 m/h Fast (moving) 0 to 3 000 m/h TRCITY wheel: Mass of the set with TRCITY tool : 7 700kg Trench width: 90 to 102mm (6 bolted elements) Trench depth: up to 500mm Offset: 250mm offset from the foot of the track D or G TR80T wheel: Mass of the set with TR80T tool : 7 850kg Trench width: 120 to 180mm (8 bolted elements) Trench depth: up to 900mm Offset: 250mm offset from the foot of the D or L track
