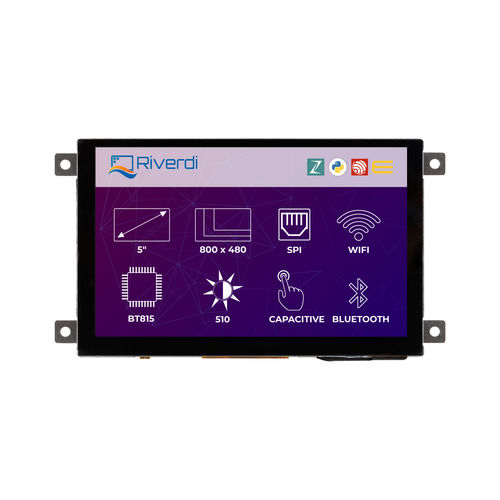

LCD display module RiTFT-50-IOT-CAP

800 x 480industrialprogrammable

RiTFT-50-IOT-CAP (PN RVT50AQEFWC00) is the first-ever IoT display on the market. The display is Python-programmable thanks to the integrated Zerynth license. You can simply take it out of the box, run Zerynth Studio, load one of many examples from the Zerynth library, and have your IoT display up and running. It’s also easily expandable through a MikroBUS socket on the backside of the display. RiTFT-50-IOT-CAP is a high-quality 5’’ capacitive screen with integrated WiFi and Bluetooth® (thanks to the ESP32 microcontroller onboard), and very low-power consumption. The perfect solution for smart homes and industry 4.0. The 800×480 resolution provides crisp and clear colors, while the screen is driven by the powerful BT815 graphics controller. Weight174 g Basic| Resolution 800×480 Size (inch.) 5" Basic | Addons LED Inverter, Mounting Frame Brightness (cd/m²) 510 Basic | Touch Screen Capacitive Basic | Viewing direction 12:00 o'clock Basic | Controller BT815 Active area (mm) 108.00×64.80 Dimensions (mm) 121.50×76.60×9.70 Basic | Interfaces SPI/QSPI Operating temp. (°C) '-20~70' Dot pitch (mm2) 0.135×0.135 Additional Information | LCD type TFT Input Voltage (V) 3.3 Gray Scale Inversion Direct. 6:00 o'clock Additional Information | Backlight Type 12 LEDs
