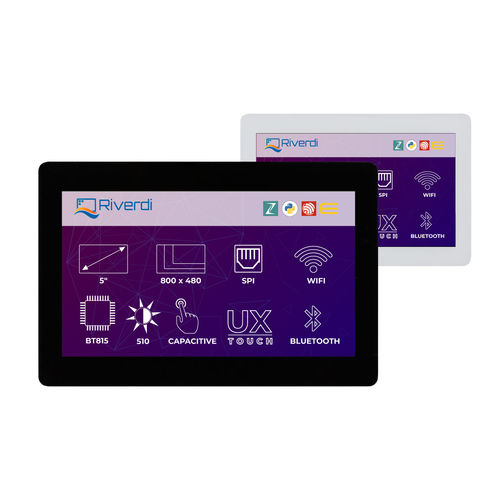

LCD display module RiTFT-50-IOT-UX

800 x 480industrialprogrammable

RiTFT-50-IOT-UX (PN RVT50UQENWC0x) is the first-ever IoT display on the market. The display is Python-programmable thanks to the integrated Zerynth license. You can simply take it out of the box, run Zerynth Studio, load one of many examples from the Zerynth library, and have your IoT display up and running. It’s also easily expandable through a MikroBUS socket on the backside of the display. RiTFT-50-IOT-CAP is a high-quality 5’’ capacitive screen with integrated WiFi and Bluetooth® (thanks to the ESP32 microcontroller onboard), and very low-power consumption. The perfect solution for smart homes and industry 4.0. The 800×480 resolution provides crisp and clear colors, while the screen is driven by the powerful BT816 graphics controller. Weight156 g Basic| Resolution 800×480 Size (inch.) 5" Brightness (cd/m²) 510 Basic | Touch Screen Capacitive Basic | Controller BT815 Basic | Interfaces SPI/QSPI Active area (mm) 108.00×64.80 Dimensions (mm) 136.00×92.80×9.20 Operating temp. (°C) '-20~70' Dot pitch (mm2) 0.135×0.135 Additional Information | LCD type TFT Input Voltage (V) 3.3 Basic | Viewing direction 12:00 o'clock Gray Scale Inversion Direct. 6:00 o'clock Additional Information | Backlight Type 12 LEDs Additional Information | Pixel Arrangement RGB Vertical Stripe
