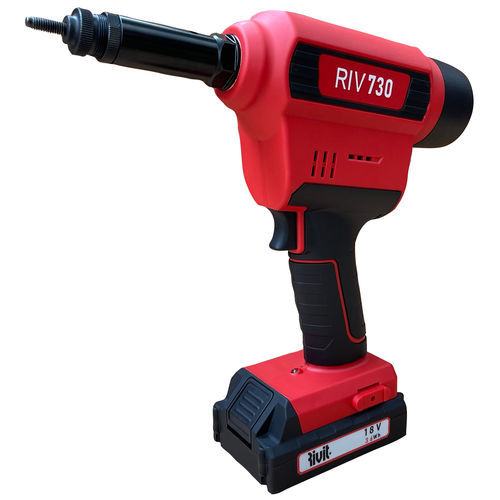

Battery tool equipped d with a powerful and reliable brushless motor and a long-life battery, the RIV730 makes of easyness and reliability its strong points, offering the customer a value-added solution covering a wide range of applications, for rivet nuts from M3 to M8 mm (M10 only in aluminum).
Tie rod holder head manually adjustable stroke.
Touch panel selection/adjustment of functions (Stroke adjustment, Counter).
Cone made of steel for greater strength and durability.
Retractable hook for balancer.
Led light indicates the operation of the tool.
Start button robust and well integrated in the structure.
Ergonomic handle made of soft rubber.
Light indicator to light the application area.
Battery led light indicating the charge level.
Composed of:
kit M6 mounted
1 kit M3, M4, M5, M8, M10
1 battery
1 charger
1 wrench 12-17-22-23.5-26
Application
General, light carpentry. (Cylindrical open rivet nuts)
Tanks, airtight boxes, tubs. (Cylindrical blind rivet nuts)
Plastics, fiberglass. (Jackriv rivet nuts)
Composite materials, fiberglass. (Tubriv rivet nuts)
Number of rivet nuts placed with one charge:
(estimated figure with 100% charged battery at room temperature of 25°C)
M3 Aluminum: 1500/1600
M3 Steel: 1400/1500
M4 Aluminum: 1400/1500
M4 Steel: 1300/1400
M5 Aluminum: 1300/1400
M5 Steel: 1200/1300
M6 Aluminum: 1200/1300
M6 Steel: 1100/1200
M8 Aluminum: 1100/1200
M8 Steel: 1000/1100
M10 Aluminum: 1000/1100
Packaging
New cardboard packaging that is lightweight, convenient, versatile and environmentally sustainable.
The right choice for every need, from the professional to the do-it-yourselfer.
