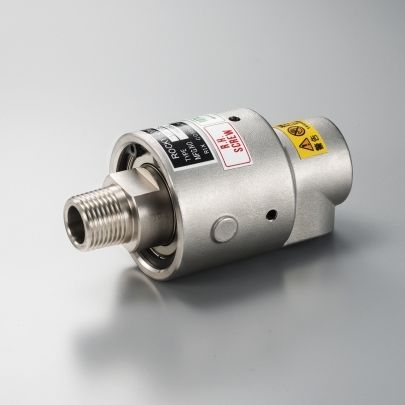

Hot water rotary union LCH seriesfor hot oilmulti-passagesteel
Add to favorites
Compare this product
Characteristics
- Medium
- for hot water, for hot oil
- Number of passages
- multi-passage
- Material
- steel
- Other characteristics
- screw-in, flange
- Rotational speed
Max.: 150 rpm
(942.48 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 15 bar
(218 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 1.5 in
Min.: 0.75 in
Description
For hot water and heat transfer oil (Applicable industry: General machinery)
Heat tolerance: Applicable for maximum temperature 200℃ (392°F) because packing and
grease have heat tolerance.
・Easy maintenance: Heat tolerance bearing is enclosed greace and no regular grease supply is
needed. Seal is easy to exchange.
Standard size 3/4 ~ 1 1/2
※Contact us if the size is over standard type.
・ Connection part shape: Screw (RH or LH) or Flange
