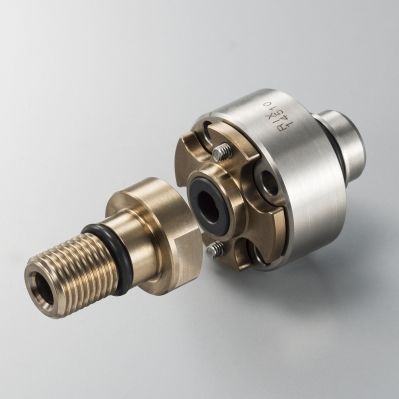

Oil rotary union ESX20M-Lmulti-passagefor machine toolsstainless steel
Add to favorites
Compare this product
Characteristics
- Medium
- for oil
- Number of passages
- multi-passage
- Applications
- for machine tools
- Material
- stainless steel
- Rotational speed
Max.: 40,000 rpm
(251,327.41 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 140 bar
(2,031 psi)Min.: 2 bar
(29 psi)
Description
Model:ESX20M-L series
Another customer of the business
Automobile Machine Tools
･ Long stroke (max. 8mm)
・Seal type: Heat shrink fit
・Body: Stainless steel
* Thrust loading to spindle side
Thrust loading is directly proportional to fluid pressure.
In case fluid pressure is 7 MPa (1,015 psi, 70 bar).
