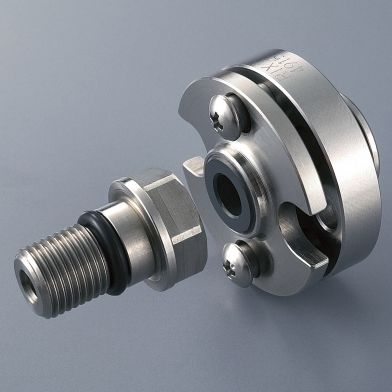

Oil rotary union ESX20M-Tmulti-passagefor machine toolsstainless steel
Add to favorites
Compare this product
Characteristics
- Medium
- for oil
- Number of passages
- multi-passage
- Applications
- for machine tools
- Material
- stainless steel
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 40,000 rpm
(251,327.41 rad.min-1)- Pressure
Min.: 2 bar
(29 psi)Max.: 120 bar
(1,740 psi)
Description
Another customer of the business
Automobile Machine Tools
Features
・Minumum length type
・Applicable for M10 rotor
・Body: Stainless steel
・Minimize amount of drain by maintaining seal contact (ES20M-T010)
* Thrust loading to spindle side
Thrust loading is directly proportional to fluid pressure.
In case fluid pressure is 7 MPa (1,015 psi, 70 bar).
