Differential pressure transmitter MU-65-2Lanalog2-wire24 Vdc
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Output
- analog, 2-wire
- Supply voltage
- 24 Vdc
- Mounting
- wall-mounted
- Fluid
- for gas
- Material
- plastic
- Protection level
- IP65
- Other characteristics
- precision, CE, two-wire, low pressure, custom, high-resolution
- Pressure range
Max.: 1,800 Pa
(0.26 psi)Min.: -1,800 Pa
(-0.26 psi)- Precision
1.5 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description

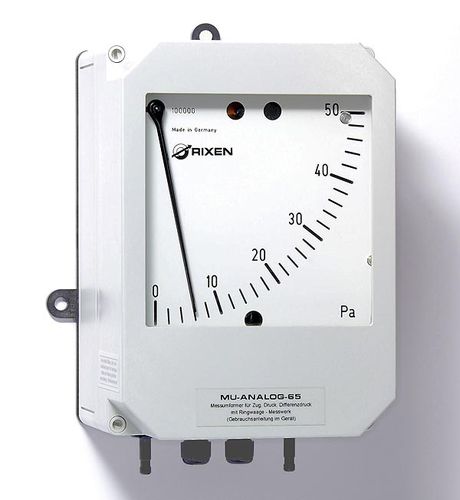

Ringbalance Differential Pressure Transmitter
“Loop-Powered” (2-wire) version
– Display large analogous display, 150x150mm (6″x6″)
– Measuring Pickup Magnetic field sensor, non-contact, and with infinite resolution
– Scale Units Pa, kPa, daPa, mbar, mmWS, mmCE, in.W.C.
– Housing wall mounting, IP65 (see page 9)
– Electrical Outputs 2-wire version: 4-20 mA;
– max. load: 680 Ohm (mA-outputs)
– respectively min. 2kOhm (V-output)
– CE Electromagnetic Compatibility accordin
Optional:
– Overload protection in one direction ( DZ1 )
– Overload protection in both direction ( DZ2 )
– Weatherproof housing “M” – All ring scales can be supplied mounted (at an extra charge) in a protective housing. Particularly robust, for installation outdoors or in harsh industrial environments.
