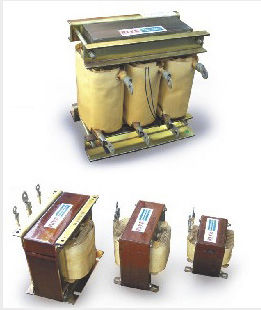

Harmonic filter reactor DC CHOCK

• International grade certificate: We have passed the ISO9001:2015 certificate , and we believe the certificate speak for themselves. • Ferrite core: Adopted the permalloy laminations，and we are able to design various air gap accordingly that can have the best performance in harmonic compensation • Winding Adopted the H class(180℃ or more higher) that certificated by UL can insulate ferrite core well，and also adopted the same class of insulation tape and resin .And electrical insulation of coil to coil and coil to ferrite core can reach more than 4000 Vrms( 5600 Vp-p) that can provide the maximum impact strength for reactor while shortage • Insulating paper: Adopt the H class insulating paper(180℃ or more higher) • Accessories The coil is installed on ferrite core or installed in EI silicon steel plate，and inside fill up with epoxy resin that make sure the mechanical strength and minimize noise • Minimize design: We offer more flexible installment，and the wide choice of our product that can satisfy our customer Specification • Standard capacity: • From 0.75 HP to 750 HP • Optional standard impedance: • 1.5%, 3%, 5%(rated current) or other special impedance • System voltage range: • 600 Voltage grade，50/60 Hz (208-600 Volt) • Insulation system: • H class(180℃ or more better) • Rated current: • From 2 to 950 Amps • Continuous current: • Must withstand the basic wave and the harmonic current • Coefficient of induction curve: • While in 0%~150% of current，the inductance value is 100%.And in 350%of current，the minimum inductance value is 50% • Induction of tolerance: • +/- 10%，turn of winding(zero tolerance) • Maximum switching frequency: • 20 KHZ。
