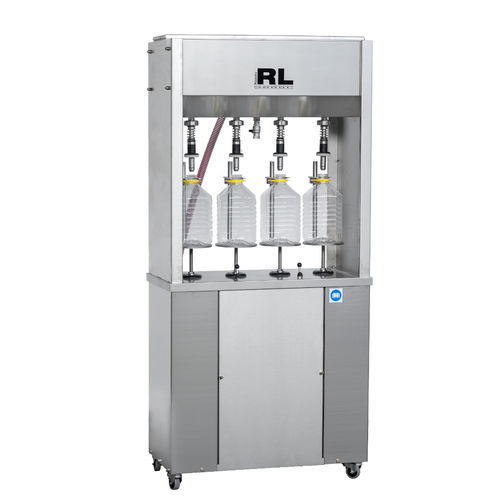

Semi-automatic filling machine RLPT-4

for PET bottlesjugweight

Filler for PET Bottles, filling duct diameter 35mm, neck track for perfect filling. Storage tank for water, wine or other non-thick products,product loading controlled by a level drill. Manual position of the cans on the table. Automatic on-up of one or two bottle at a time. Manual regulation of the table and the neck in order to use different bottle sizes. It describes the operation: you place one or four cans on the tables, thanks to a pneumatic lever in "on" position their tables come up, finished filling you bring the lever on "off " and take the cans away. Production: for 4 PET Bottles of 5 lt. 15/20 sec. - 700 bh (dependent on the operator) - 200mm diameter max - max height 400mm - valve section 35 mm Machine height 194 cm / depth 40cm/ width 90 cm - weighing about 100kg - Voltage 380v
