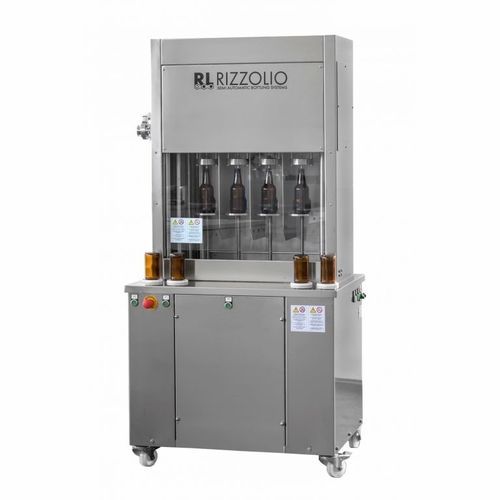

Semi-automatic filler RLV-iSo

for glass bottlesfor waterbeverage

It is possible to lodge it on 4 wheels for easy moving or on request 4 feet with a core of stainless steel and PVC base with adjustable height. The filling Counter pressure, it is suitable for filling sparkling beverages also like beer, sparkling wine, sparkling water, drinks etc … Can also fill PET bottles through the use of special guides neck (optional) Using the two level sensors is handled getting the right product flow into the tank that has been tested up to 5 bar. The tank, are 8mm thick and the 2 side covers facilitates its access to the ordinary and extraordinary maintenance. The filling inside the bottles is kind of anti-foaming, thanks to the rubbing ring , that distributes the product along the bottles walls The machine is built in accordance with current CE regulations. We can supply 2, 4 or 6 valves Current consumption 0,37kw Air consumption at 6 bar: 120lt/min Low-voltage 24v Power supply 220v 50/60hz or special tensions
