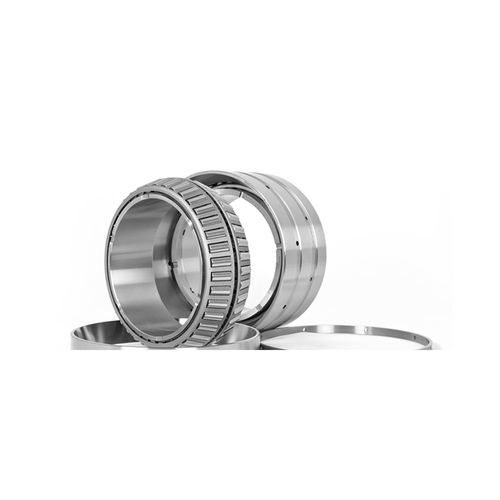

Tapered roller bearing

radialaxialfour-row

RKB four-row tapered roller bearings are produced mainly in TQO and TQI configuration, in open or closed version. Supplied with the required axial internal clearance (BEP), they are mainly employed on work rolls of rolling mill applications. The use of high quality raw materials, special heat treatments, and innovative sealing solutions are at the base of their superior operating reliability and longer service life expectancy. Type TQO1 One double cup, two single cups, plus two cup spacers (plain or with lubrication grooves and holes) Two double cones, plus one cone spacer (plain or with lubrication holes) Four one-piece window type steel cages Supports radial and axial loads in both directions Preset or adjusted BEP on customer’s request Available with helical groove in the bore (G) Marked zones on cups side face to easy mounting and maintenance operations Available in metric and inch sizes Optimized roller profile Type TQITE Two double cup, plus one cup spacer (plain or with lubrication grooves and holes) One double cone, two single cones featuring tapered bore Four one-piece window type steel cages Preset or adjusted BEP on customer’s request Available with helical groove in the bore (G) Marked zones on cups side face to easy mounting and maintenance operations Available in metric and inch sizes Optimized roller profile With extended inner ring on one side for radial shaft seal Type TQO2 One double cup, two single cups, plus two cup spacers (plain or with lubrication grooves and holes) Two double cones, plus one cone spacer (plain or with lubrication holes)
