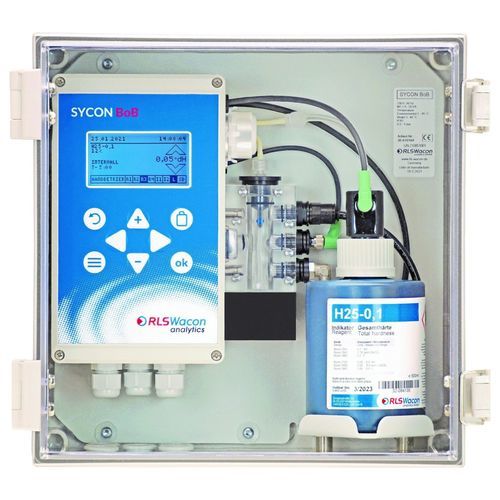

Water analyzer SYCON BoB

monitoringfor boilerwater hardness

The SYCON BoB is an online analysis device for monitoring soft water for operation without constant supervision for safe operation during 72 hours (BOB 72 hours). The additional relay contacts make it possible to control an external cooling water valve for a sample cooler. The device status can be connected to remote maintenance via the existing RS-485 interface with Modbus-RTU protocol. TÜV certified according to VdTÜV leaflet BP WAUE 0100 for operation without constant supervision for safe operation for 72 hours (BOB 72 hours) Use in large water boilers with salty, low-salt or salt-free driving with a limit value of 0.01 mmol/l or 0.05 °dH according to EN12953-10 (indicator H25-0.1) Use in circulation tanks with a limit value of 0.005 mmol/l or 0.03 °dH according to EN12952-12 (indicator H25-0.05) Monitoring of boiler feed water, boiler water or condensate return Level monitoring of the indicator by a level probe Graphic display, menu navigation in German, English, Italian, French, Spanish, Russian, Polish, Dutch and Danish. Easy commissioning using the installation assistant Documentation of all measurement results on an SD card Low maintenance effort thanks to hose pump technology and rinsing of the measuring cell with line pressure Self-calibrating against extraneous light, dirt and turbidity in the water sample Reliable through self-diagnosis and plausibility monitoring of the sensor data during the analysis Maintenance-free full-color sensor Ports: 4 potential-free outputs: Limit exceeded Exceeding the limit value / falling below the limit value / low indicator level Device failure Analysis active / cooling water valve / Indicator level low
