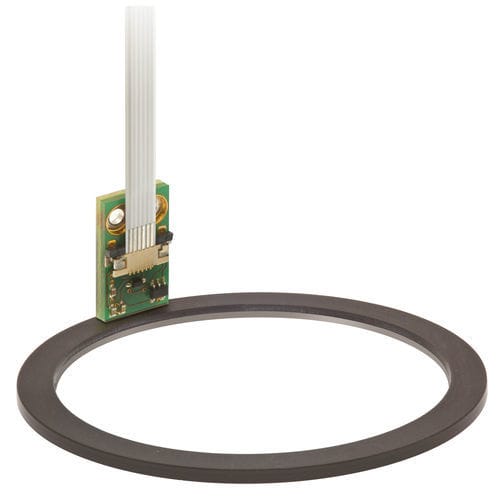

Incremental linear encoder RLB

magnetic13-bitIEC

RLB is a PCB level incremental encoder sensor system consisting of a PCB sensor and magnetic scale or ring. It has been designed for embedded motion control applications as a position control loop feedback element in space constraint applications. Features Incremental quadrature TTL output signals A, B, Z Periodic, bidirectional index impulse Benefits Miniature design High speed operation Flex cable connection RoHS compliant Product data System Accuracy ±40 µm Accuracy grade for MS scales ±40 µm Hysteresis < 3 μm (at 0.3 mm ride height) Pole length 2 mm Max. interpolation factor 8,192 Maximum length for MS scale 50 m Electrical Current consumption < 20 mA Connection JST 06FKZ-SM1 Mechanical Mass 0.46 g Environmental Shocks (6 ms) 300 m/s2 (IEC 60068-2-27) Vibrations (55 Hz to 2000 Hz) 300 m/s2 (IEC 60068-2-6)
