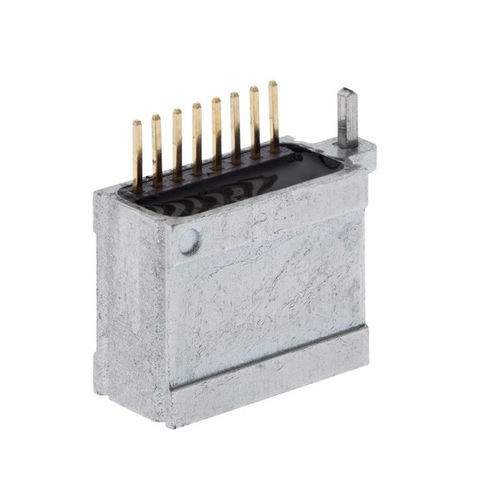

Incremental linear encoder RLM

magnetic13-bitnon-contact

RLM is a component-level encoder system consisting of a RLM readhead and a magnetic scale or ring. It is designed as a position control loop element for embedded motion control applications. The encoder also has a self-diagnostic function for error detection. Features Miniature design Unique or periodic bidirectional reference mark Suitable for use with linear scales, radial and axial rings Benefits High system accuracy up to ±10 μm High-speed operation Non-contact and wear-free measuring principle Pin or flexible cable option Product data System Pole length 2 mm Maximum length for MS scale 50 m Electrical Supply voltage 5 V ±0.25 V– voltage on readhead Current consumption < 130 mA with 120 Ω termination (valid for RS422 version), < 30 mA without 120 Ω termination Environmental RoHS Compliant with EU Directive 2002/95/EC Shocks (11 ms) 300 m/s2 (IEC 60068-2-27) Vibrations (55 Hz to 2000 Hz) 300 m/s2 (IEC 60068-2-6)
