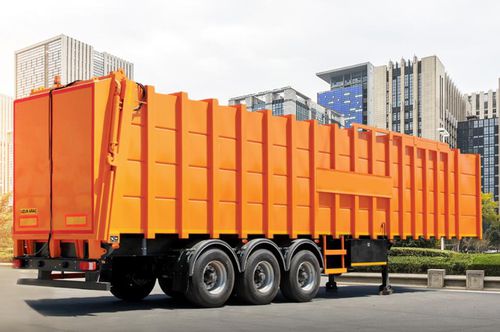

3-axle trailer

for wasteliftinghydraulic

From 45 m2 to 70 m3 capacity • 3 axles • ABS system • ADR- Electrical equipemnt • TRS (BRS) anti-tilt system • Air brakes • Air suspension • 1st lifting axle • 2 mechanical supports • Electrical connection: 1x15 pole in accordance with ISO 12098 • Saddle plate 2 “(king pin) • Semi-trailer construction waterproof, protected against corrosion and wear • Floor semi-trailers made of sheet steel or Hardox • Anti-corrosion protected with reinforcements • Integrated leachate tank with grate for separating solid and liquid phases, volume 300l • Thrust plate 3mm thick, front part of the plate made of special steel HB 400, wear-resistant • Hydraulic pumps: 2 (two) independent hydraulic pumps, working pressure 200 bar • Independent diesel engine, with noise protection, built into the chassis of the semitrailer in the lower part • 24 V electrical installation • Oil tank, volume 180l, located in the chassis of the semi-trailer • 35l diesel fuel tank located in the chassis of the semi-trailer • Hydraulic installation of cylinders without flexible hoses • Independent operation of the pressure plate and auxiliary operations
