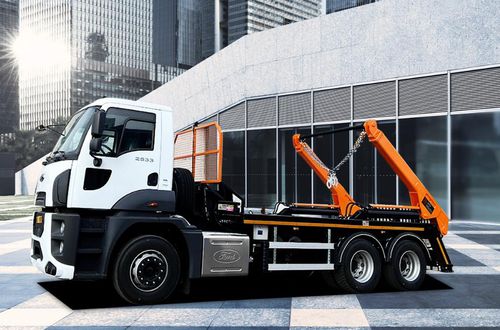

Truck skiploader

swing-arm

• Lifting Capacityfrom 8 to 12 tones • Container Capacity (m3) Proper to load&unload 5 – 12m3 • Steel Thickness Floor 4-6 mm St-52 • Sub frame “U” shape full length 6 mm St-52 • ControlManual + electrical systemTruck engine r.p.m.Should be arranged between minimum 1100dev./min. and maximum 1500rpm/min. • P.T.O.Original of the truck chassis. • Cycle App. 100 (+-20) seconds (Lifting +locking +tilting/unloading) • Loading Height Approximately 1250mm. from ground • Pump P.T.O driven Hydraulic Gear Pump between 73-90 cm3 origin Gear Pump. Exact capacity Depends on truck rpm( cc./minute) • Working Pressure (bar)160-180 bar ((+-20 bar) depens o truck P.T.O. and hydraulic pump. • Hydraulic Cylinders: 4 units of hydraulic cylinders + 1unit pneumatic cylinder. Miles grinded,Pipes honed, and hard chrome coated (2 units for standard arms and 2 units cylinder for stabilizing jacks which are hydraulic And 1 unit pneumatic for container locking) • Painting: All steel parts surfaces free of rust, will be applied with one primer, and two finishing paint coating in color of demand. • General Two plastic mudguards with rubber flaps at rear ends. • Electrical system is separated from the circuit of the truck
