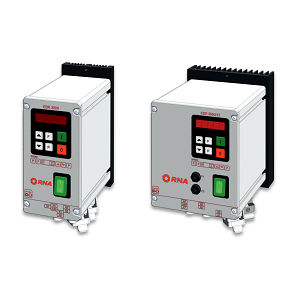

Control panel ESR 3000

RNA supplies optimum control concepts. These range from low cost units to the self-calibrating high-tech unit with microprocessor control. Intelligent processing of peripheral sensors, tailored to the requirements of feed technology allow communication with hierarchy control systems. Moreover, the control units are available under a CE and CSA/UL licence. ESR 3000 Power output for vibration bowl or linear feeder Automatic adjustment of the vibration ferquency after calibration, i.e. fine machanical tunings (fitting springs) are not necessary Automatic switching to 230V or 110V mains voltage Membrane keypad for setting and changing the working values in the setting menus Simple menu navigation to change setting parameters Manual adjustment of the transient and decay responses by changing the time constants External activation 24V DC One relay output and one optocouplers fot stauts messages and further links Connection of one sensor (supply voltage 24V DC 10mA) Plug-in connections for RNA vibratory bowl and linear feeders, sensors and communication Self-protecting (max. current monitoring) Double-pole main switch CE and EMC tested CE, EMV and UL tested
