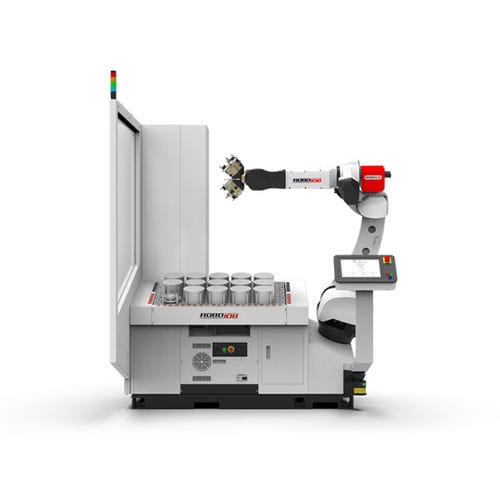

Robotic loading cell Turn-Assist Essential

unloadingfor small partscompact

Your essential standard automation for lathes Small runs Robot payload: 12 up to 70kg Integrated or Separated This easy-to-use automation is developed specifically for the loading and unloading of small runs and/or small workpieces. It has a fixed table that you can configure in minutes for different workpiece dimensions thanks to the patented positioning principle. You can also use grid plates, for example with workpieces in special shapes.As a result of our user-friendly interface you can automate your small runs in just a few minutes: the intuitive, graphic software guides you step by step when setting up your assignment. The entire automation system is built on a single chassis, which makes this model quick to install and easy to move. This model can be placed at the front of your cnc lathe, while the door remains constantly accessible. 01 3 coloured signal tower 02 Integrated safety wall 03 Configurable feed and removal 04 Built-in robot controller 05 Fixed chassis & anchoring points 06 Fanuc Robot with 35 kg payload 07 Clamping force control for grippers 08 Control panel 09 Laser scanner Separated The table, robot, industrial PC and safety wall are physically separated from each other. This offers more flexibility in terms of set-up and robot type, which allows us to increase the payload.
