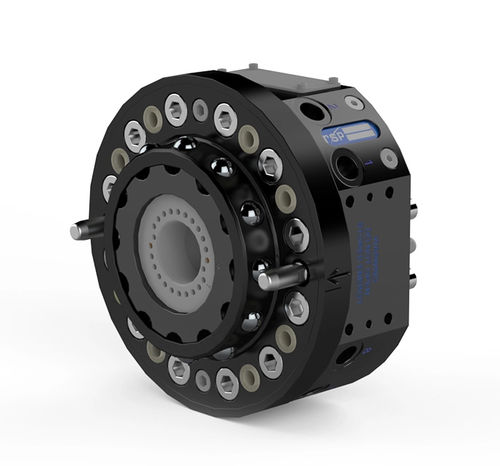

Robotic tool changer TC1000-8

pneumatic

For robot payload 1000 kg Compact design Minimum of wear of the contact surfaces Optimized for material handling and tough environments Tool changing ability for Tool changer TC1000-8 The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool. Mechanical interface - ISO 9409-1-200-12-M16 Robot payload - 1000 kg | 2200 lb Fz - ± 10000 N | ± 2200 lb Mz - ± 10000 Nm | ± 88000 lbf·in Mx/My - ± 10000 Nm | ± 88000 lbf·in Weight - 19.7 kg | 43.43 lb Height - 100 mm | 3.94 in Air channels total - 10 Air channels dedicated - 2 (TC open and TC close) Air channels available to tool - 8 Air connection, inlet - G 1/2" (8x), G 1/8" (2x) Max air pressure - 10 bar | 145 psi Air flow per channel - 2000 l/min | 70.6 CFM Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Working temperature - +10°C – +50°C | 50 °F – 120 °F
