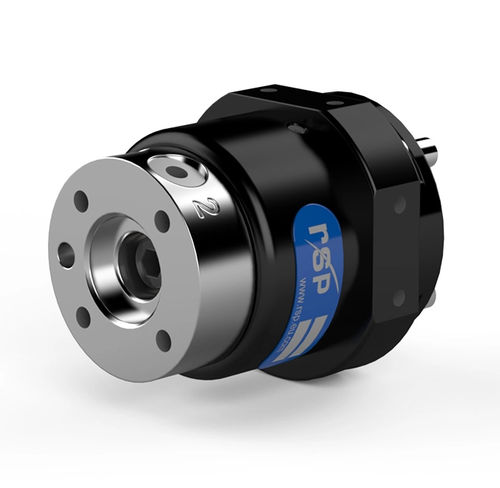

Air rotary union S5-2-40
2-passagefor robots

Air rotary union - S5-2-40 - Robot System Products AB - 2-passage / for robots
Air rotary union - S5-2-40 - Robot System Products AB - 2-passage / for robots
Air rotary union - S5-2-40 - Robot System Products AB - 2-passage / for robots - image - 2
Add to favorites
Compare this product


Characteristics

Medium
for air
Number of passages
2-passage
Applications
for robots
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Description

For robot payload 5 kg Allows continuous rotation of axis 6 Increased mobility Reduces hose package interference Maximizes hose package lifetime With RSP swivel S5, the axis 6 can rotate freely. Wear on the hose package decreases, while uptime and productivity is increased. If the swivels are used with our hose packages, axis 4 and 5 are also able to rotate unimpeded. The full working range of the robot can be utilized. RSP has developed our own patented slip ring solution for maximized reliability. Mechanical interface - ISO 9409-1-40-4-M6 Robot payload - 5 kg | 11 lb Fz - ± 50 N | ± 11 lb Mz - ± 20 Nm | ± 180 lbf·in Mx/My - ± 50 Nm | ± 450 lbf·in Weight - 0.4 kg | 0.88 lb Height - 60 mm | 2.36 in Centre of gravity (Z) - + 24 mm Air connection, inlet - M5 (2x) Air connection, outlet - M5 (2x) Air flow per channel - 150 l/min | 5.30 CFM Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Working temperature - +10°C – +50°C | 50 °F – 120 °F
