Air rotary union STC100-2ES

4-passagefor robotswith seal

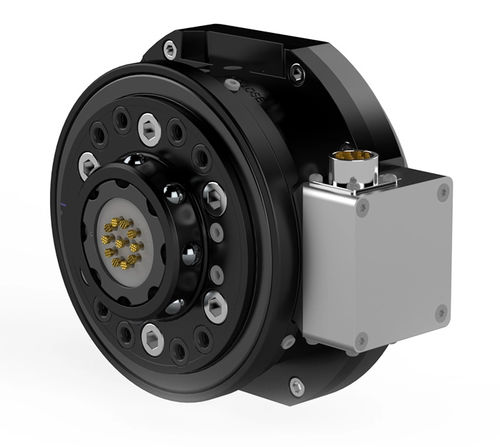

For robot payload 100 kg Allows continuous rotation of axis 6 Increased mobility Reduces hose package interference Maximizes hose package lifetime The RSP Swivel tool changer STC100 is a unique combination of a swivel and a tool changer. As the sole supplier, we offer integrated swivel- and tool changing functions, which combine the free rotation of axis 6 with compactness and minimal extension from the robot’s tool plate. RSP‘s swivel tool changers unite the best of two technologies and together with our own developed and patented slip ring solution it provides maximized reliability. Product category - Swivel tool changers Mechanical interface - ISO 9409-1-100-6-M10 Robot payload - 100 kg | 220 lb Working temperature - +10°C – +50°C | 50 °F – 120 °F IP Class - IP 54 Fz - ± 1000 N | ± 220 lb Mz - ± 1000 Nm | ± 8800 lbf·in Mx/My - ± 1000 Nm | ± 8800 lbf·in Weight - 6.2 kg | 13.67 lb Height - 97 mm | 3.82 in Air channels dedicated - 2 (TC open and TC close) Air channels available to tool - 2 Air flow per channel - 600 l/min | 21.19 CFM Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Signals total - 12 Signals dedicated robot side - 4 (0 V, 24 V, TC coupled and TC uncoupled) Signals available to tool - 8 Rated current - 1 A Connection robot side - Souriau UT001412PHT Robot brand - ABB, Comau, Denso, Fanuc, Hyundai, Kawasaki, KUKA, Nachi, Staubli, Universal Robots, Yaskawa Motoman
