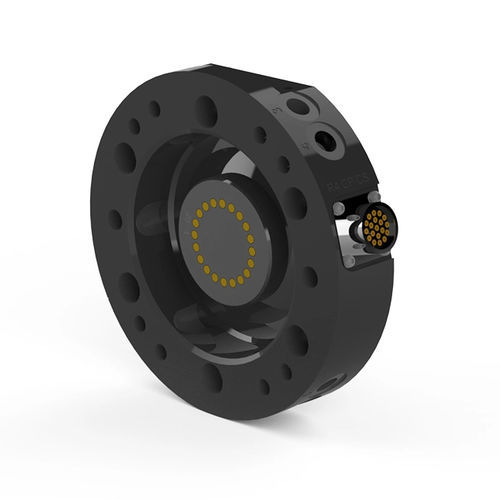

Robotic tool changer A250-8E

For attachment of tool when using a tool changer TC250 Tool changing ability The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools. Mechanical interface - ISO 9409-1-125-6-M10 Robot payload - 250 kg | 550 lb Fz - ± 2000 N | ± 450 lb Mz - ± 1250 Nm | ± 11000 lbf·in Mx/My - ± 2000 Nm | ± 17600 lbf·in Weight - 2.7 kg | 5.95 lb Height - 35 mm | 1.38 in Signals total - 19 Signals dedicated tool side - 3 (GND, 0 V and 24 V) Signals available to tool - 16 Connection tool side - Souriau UT0W01419SH Rated current - 2 A Rated voltage - 60 V IP Class - IP 54 Air channels available to tool - 8 Air connection, outlet - G 1/4" (8x) Air flow per channel - 1600 l/min | 56.5 CFM Max air pressure - 10 bar | 145 psi Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Working temperature - +10°C – +50°C | 50 °F – 120 °F
