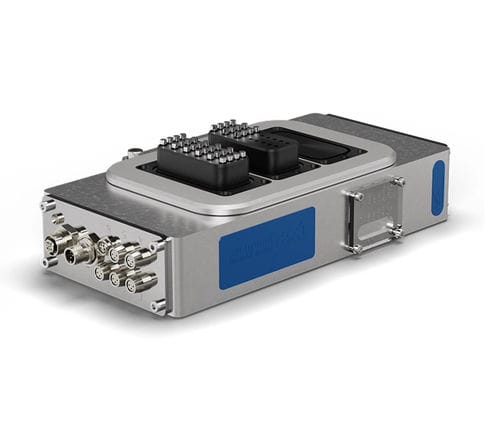

ProfiNet interface module P7501-821

powerfor robotsfor tool changers

Moduflex Safety Module for robot side, Material Handling Solution (Yaskawa compatible) RSP:s patented safety solutions for the Moduflex series tool changers and tool attachments, with internal safety supervision, making it highly suitable for automotive industry. The RSP Safety module combine transfer of control signals and power with a built-in safety unit. It is designed for a variety of robot applications, and it is available for a number of robots and connections. Using this safety module, the tool changer will not open – independent of control siugnal from the robot controller – unless it is empty or, alternatively, when the tool changer (TC) with tool attachment (TA) is in a safely docked position in a tool stand. The safety module is to be used together with the Moduflex series tool changers from RSP, and it is a unique and patented product for safe tool changing with robots, highly suitable for automotive production. Connector 1 - M12 D-coded, Female C1 Signals total - 4 (2 pair) C1 Signals dedicated - 4 (2 pair) C1 Signals available - 4 (2 pair) Connector 2 - M12 A-coded, Male C2 Type - 24V supply C2 Rated current - 4A C2 Rated voltage - 24V C2 Signals total - 4 + PE C2 Signals dedicated - 2x24V, 2x0V + PE C2 Signals available - 2x24V, 2x0V + PE IP Class - IP 54 (in docked condition) Weight - 2.6 kg | 5.7 lb Working temperature - +10°C – +50°C | 50 °F – 120 °F
