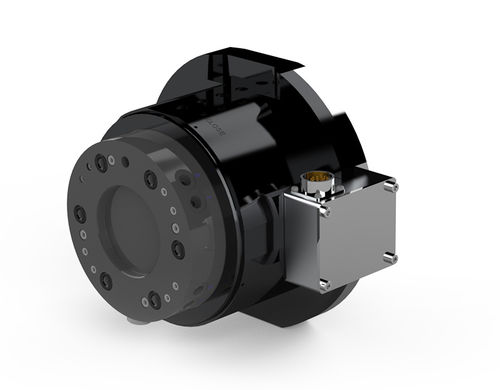

Air rotary union S250-8E ALU

8-passagefor robotsaluminum

For robot payload 250 kg Aluminum housing Allows continuous rotation of axis 6 Increased mobility Reduces hose package interference Maximizes hose package lifetime With RSP swivel S250, the axis 6 can rotate freely. Wear on the hose package decreases, while uptime and productivity is increased. If the swivels are used with our hose packages, axis 4 and 5 are also able to rotate unimpeded. The full working range of the robot can be utilized. RSP has developed our own patented slip ring solution for maximized reliability. Mechanical interface - ISO 9409-1-125-6-M10 Robot payload - 250 kg | 550 lb Working temperature - +10°C – +50°C | 50 °F – 120 °F Fz - ± 2500 N | ± 550 lb Mz - ± 1250 Nm | ± 11000 lbf·in Mx/My - ± 2000 Nm | ± 17600 lbf·in Weight - 11.5 kg | 25.4 lb Height - 176 mm | 6.93 in Air flow per channel - 1600 l/min | 56.5 CFM Air quality - Oil-clean and waterless filtered air, with max 25µm particle content IP Class - IP 54 Signals total - 18 Signals dedicated robot side - 1 (GND) Signals dedicated tool side - 1 (GND) Signals available to tool - 17 Rated current - 2 A Rated voltage - 40 V Connection robot side - Souriau 23p Male Connection tool side - Souriau compact 19p Female
