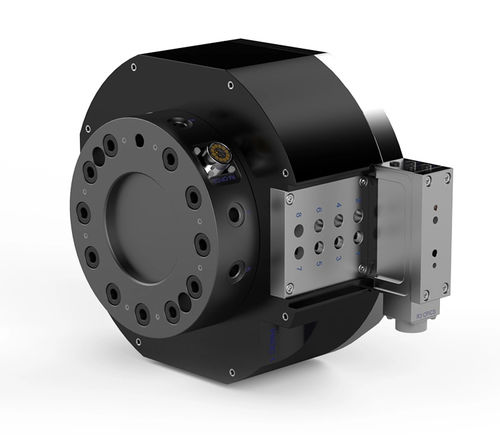

Air rotary union S350-8E

8-passagefor robots

For robot payload 350 kg Allows continuous rotation of axis 6 Increased mobility Reduces hose package interference Maximizes hose package lifetime With RSP swivel S350, the axis 6 can rotate freely. Wear on the hose package decreases, while uptime and productivity is increased. If the swivels are used with our hose packages, axis 4 and 5 are also able to rotate unimpeded. The full working range of the robot can be utilized. RSP has developed our own patented slip ring solution for maximized reliability. Mechanical interface - ISO 9409-1-160-11-M12 Robot payload - 350 kg | 800 lb Working temperature - +10°C – +50°C | 50 °F – 120 °F Fz - ± 3500 N | ± 800 lb Mz - ± 3500 Nm | ± 31000 lbf·in Mx/My - ± 3500 Nm | ± 31000 lbf·in Weight - 19.4 kg | 42.77 lb Height - 192 mm | 7.56 in Air flow per channel - 800 l/min | 28.28 CFM Air quality - Oil-clean and waterless filtered air, with max 25µm particle content IP Class - IP 54 Signals total - 14 Signals dedicated robot side - 3 (GND, 0 V and 24 V) Signals dedicated tool side - 3 (GND, 0 V and 24 V) Signals available to tool - 11 Rated current - 2 A Connection robot side - Souriau 23p Male Connection tool side - Souriau compact 19p Female
