Spool distribution block P0036

pneumatic5/2standard

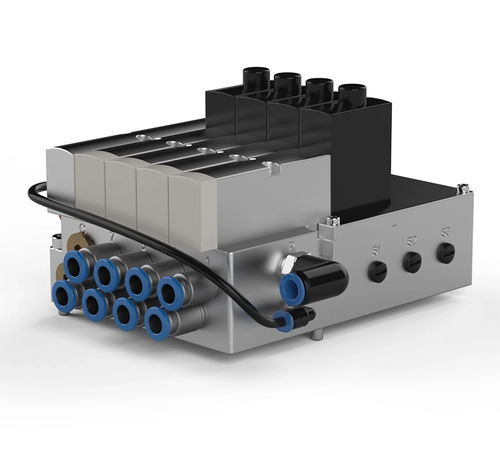

Extended small valve unit with four valves Built in connection box for I/O signals Standard ISO15407-2 18mm IE interface The RSP valve unit is connected to the robot signal/air interface. The signals from the robot are connected to the terminal inside the valve unit. Connections for up to four valves with two solenoids each are prewired. On the valve unit a contact is mounted for transferring signals to/from the tool mounted at the wrist of the robot. As standard Festo-valves are used. Other brands can be fitted on request. Working temperature - +10°C – +50°C | 50 °F – 120 °F Weight - 1.9 kg | 4.19 lb Air connection, inlet - Ø8 mm hose (1x) Air connection, outlet - Ø8 mm hose (8x) Air channels available to tool - 8 Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Valve size - ISO15407-2 18 mm Valve type - 4 x Directional valves 5/2 Monostable IP Class - IP 54 Signals dedicated tool side - 1 (0 V) Voltage, valves - 24 V Connection input - 1x M16x1.5 for cable gland, 1x M20x1.5 for cable gland Connection output - Souriau 23p Female Rated current - 2 A
