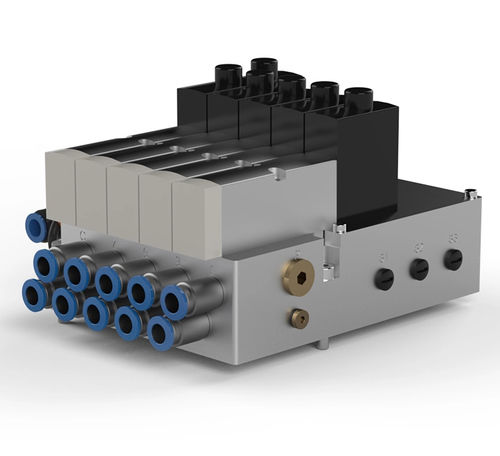

Spool distribution block P0029
pneumatic5/2standard

Spool distribution block - P0029 - Robot System Products AB - pneumatic / 5/2 / standard
Spool distribution block - P0029 - Robot System Products AB - pneumatic / 5/2 / standard
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
pneumatic
Ports/positions
5/2
Other characteristics
standard
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145.04 psi)

Description

Extended small valve unit five valves One valve is dedicated for tool change The tool change valve shuts off the air to the other valves on tool change Built in connection box for I/O signals Standard ISO15407-2 18mm IE interface The RSP valve unit is connected to the robot signal/air interface. The signals from the robot are connected to the terminal inside the valve unit. Connections for up to four valves with two solenoids each are prewired. On the valve unit a contact is mounted for transferring signals to/from the tool mounted at the wrist of the robot. As standard Festo-valves are used. Other brands can be fitted on request. Working temperature - +10°C – +50°C | 50 °F – 120 °F Weight - 2 kg | 4.4 lb Air connection, inlet - Ø8 mm hose (1x) Air connection, outlet - Ø8 mm hose (10x) Air channels dedicated - 2 (TC open and TC close) Air channels available to tool - 8 Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Valve size - ISO15407-2 18 mm Valve type - 1x Tool change valve 2×3/2 NO/NC, 4 x Directional valves 5/2 Monostable IP Class - IP 54 Signals dedicated tool side - 1 (0 V) Voltage, valves - 24 V Connection input - 1x M16x1.5 for cable gland, 1x M20x1.5 for cable gland Connection output - Souriau 23p Female Rated current - 2 A
