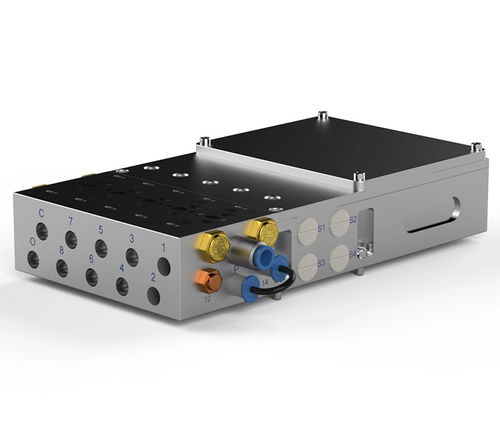

Spool distribution block P0040A

pneumaticstandard

Large valve unit for up to five valves Built in connection box for I/O signals Fits standard ISO01 26mm IE interface The RSP valve unit is connected to the robot signal/air interface. The signals from the robot are connected to the terminal inside the valve unit. Connections for up to five valves with two solenoids each are prewired. On the valve unit a contact is mounted for transferring signals to/from the tool mounted at the wrist of the robot. As standard Festo-valves are used. Other brands can be fitted on request. Working temperature - +10°C – +50°C | 50 °F – 120 °F Weight - 2.7 kg | 5.95 lb Air connection, inlet - Ø10 mm hose (1x) Air connection, outlet - Ø8 mm hose (10x) Air channels available to tool - max 10 Air quality - Oil-clean and waterless filtered air, with max 25µm particle content IP Class - IP 54 Signals total - max 39 Signals dedicated tool side - 3 (GND, 0 V and 24 V) Signals available to tool - max 21 Connection input - 2x M25x1.5 for cable gland Connection output - Souriau 23p Female Rated current - 5 A
