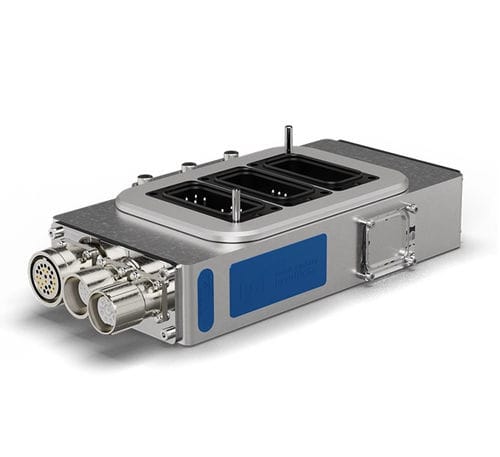

ProfiNet interface module P7501-023

powerfor robotsfor tool changers

RSP:s patented safety solutions for the Moduflex series tool changers and tool attachments, with internal safety supervision, making it highly suitable for automotive industry. The RSP Safety module combine transfer of control signals and power with a built-in safety unit. It is designed for a variety of robot applications, and it is available for a number of robots and connections. Using this safety module, the tool changer will not open – independent of control siugnal from the robot controller – unless it is empty or, alternatively, when the tool changer (TC) with tool attachment (TA) is in a safely docked position in a tool stand. The safety module is to be used together with the Moduflex series tool changers from RSP, and it is a unique and patented product for safe tool changing with robots, highly suitable for automotive production. Connector 1 - M12 D-coded, Male C1 Signals total - 4 (2 pair) C1 Signals dedicated - 4 (2 pair) C1 Signals available - 4 (2 pair) Connector 2 - Souriau compact, 26S, Female C2 Type - 24V supply, Signal C2 Rated current - 2A (7 signals), 4A (24V supply) C2 Rated voltage - 24V (24V supply), 40V (7 signals) C2 Signals total - 11 + PE C2 Signals dedicated - 2x24V, 2x0V + PE C2 Signals available - 2x24V, 2x0V + PE + 7 Connector 3 - M23 Signal, Female thread, 17 socket C3 Type - Resolver C3 Signals total - 6 (3 Shielded twisted pair) C3 Signals available - 6 (3 Shielded twisted pair) C4 Rated current - 4x5A, 4x15A C4 Rated voltage - 4x300V, 4x600V C4 Signals total - 8 C4 Signals available - 8 Weight - 2.3 kg | 5.07 lb
