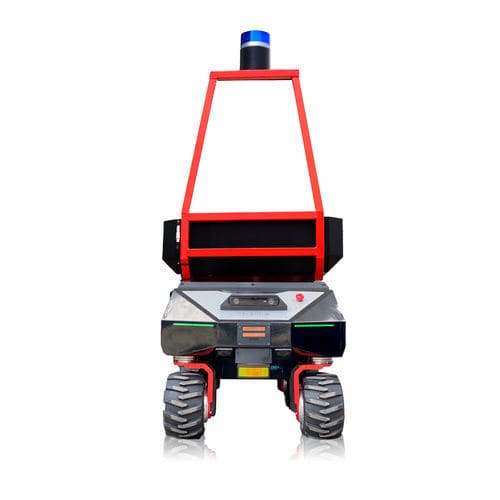

Transport autonomous mobile robot RB-VOGUI

handlingagriculturefor logistics

Autonomous Mobile Robot (AMR) suitable for indoor and outdoor logistics applications due to its versatility and high mobility RB-VOGUI is a general purpose mobile robotic platform designed primarily for outdoor transport tasks. It is a highly mobile all-terrain modular base with omnidrive kinematics that allows it to move both indoors and outdoors, including the most complex terrains. It is optimal for automating different tasks in sectors such as agriculture, construction, logistics or R&D with end applications based, for example, on last mile delivery. In addition, the mobile platform allows the option of integrating a Universal Robots robot arm, making it the RB-VOGUI+ mobile manipulator for indoor and outdoor mobile handling tasks. All Robotnik robots are modular and have a ROS-based architecture. TECHNICAL SPECIFICATIONS MECHANICAL Dimensions: 1.044 x 776 x 742 mm Weight: 165 kg Speed: 2,5 m/s Environment: Indoor / Outdoor Enclosure class: IP53 weatherproof Autonomy: Up to 6 h Traction motors: 4 x 500 W with brake Kinematics: Omnidirectional / Dual Ackerman Localization system: SLAM Temperature range: -10ºC to +45ºC Max. slope: 47% COMMUNICATION WiFi 802.11 b/g/n/ac Bluetooth 4.0 CONNECTIVITY USB x3 Ethernet x2 HDMI x1 DC Power Output COMPONENTS INCLUDED CPU Intel i7 Safety Pack 2D safety scanner Outdoor x2 Safety PLC RGBD Camera 4G Router IMU GPS Battery 48VDC@30Ah Charging station OPTIONAL 5G Router AI + Vision Package 3D Localization and Navigation Package Load Basket Telescopic column
