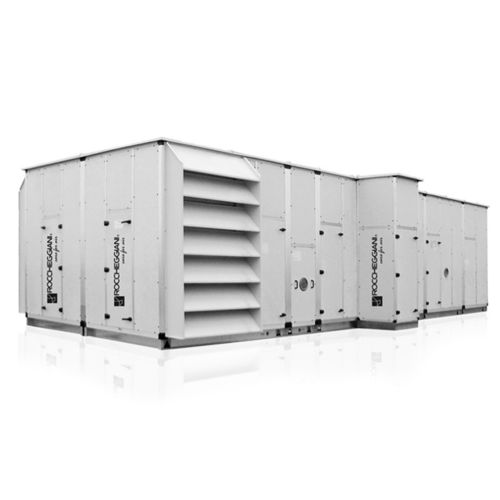

Horizontal air handling unit CTAsingle-flow
Add to favorites
Compare this product
Characteristics
- Configuration
- horizontal
- Type
- single-flow
- Air flow
Max.: 85,000 m³/h
(3,001,746.671 ft³/h)Min.: 1,500 m³/h
(52,972 ft³/h)
Description
Handling units to following performance classes:
- Mechanical strength of housing:
units with polyurethane foam panels of thickness 25 mm and 54 mm were
found in Class "D1(M)" (best benefits provided by the standard) in both the test in positive and negative pressure.
Fire Reaction Certification
The panels, sandwich type, sheet metal / polyurethane / sheet metal were tested by Istituto Giordano SpA according to UNI 9177:1987 with the following results:
- category 1 with the test method according to UNI 8457 and UNI 8457/A1
- category 1 with the test method according to UNI 9174 and UNI 9174/A1
Therefore for the panels under consideration are ascribed
CLASS OF REACTION TO FIRE 1 (one)
Catalogs
HVAC solutions General Catalogue
600 Pages
