Core drilling drilling rig HYDROMOBIL-432

explorationwater wellmobile

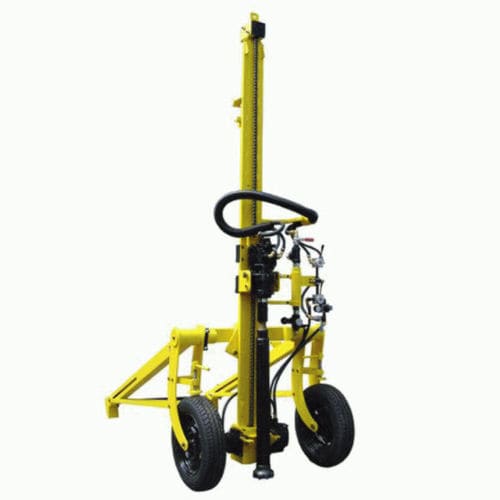

HYDROMOBIL-432 The HYDR0M0BIL 432 is a châssis mounted drill rig which is moved by two tires, It is designed for drilling with down the hole hammer, drag bits from 21/2” (64mm) up to 6” (152mm), to a aepth ofup to 50 meters, depending on geological formation, Compressor capacity, skill ofthe operator weight ofthe hammer, bit, drill pipe and the hole diameter. This drill rig can be applied in a wide variety of applications: explorations, minestripping, blast-hole, anchors, underground drilling cementation and water well drilling. OPTIONAL: •Pneumatic Rotary Heads. •Pneumatic Drifters. •Feed systems. •Hydraulic rotary heads. •Air-line Lubricators. •Control Panels. •Out of the hole Shock absorbers. •Three Wheeler. •360 DegreeTurntable mast. ROTARY HEADS: -0-80 rpm @ max T=500 Nm -0-60 rpm @ max T=600 Nm -Others upon request OTHERS: -Diesel Engine -Electric Power pack Rig performance is directly reloted to the geologicol conditions, operator skills, tools being used and other variables. Rig spécification presented here are under factory test conditions and Rockdril reserves the right to change design, prices and terms at any time without notification or obligation.
