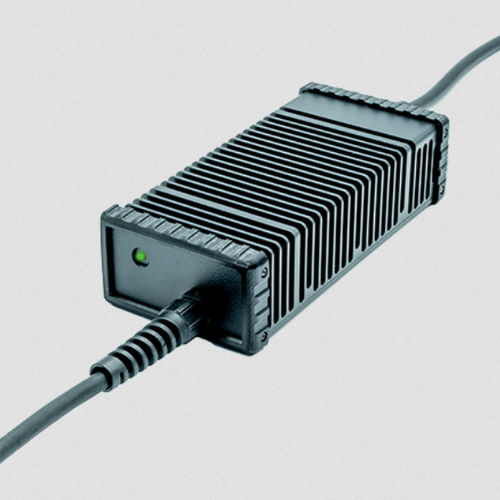

AC/DC power supply ACS150

adaptermobile

All over the world, mobile IT equipment such as tablets and laptops are supplied with commercially available desktop power supplies that withstand much worse environmental conditions than the central IT equipment. With the AC adapter models ACS90 and ACS150, roda pushes open a door to a new dimension in the rugged world. Water- and sand-protected, shockproof, drop- and EMC-protected, the AC adapter can also be used at the temperatures designated for IT equipment. Despite the aluminium housing, EMC filter boards and reinforced cable sheath, the full-rugged ACS150 is only 50 % heavier and approx. 25 % larger in volume than a commercially available power supply unit of the same performance class (comparison with the standard power supply unit roda Lizard® RW14 or RB14) Technical Specification Input voltage 100-240 VAC Frequency 50-60 Hz (100-240 VAC) 400 Hz (110 VAC) Input current 1.60 A (115 VAC) 0.80 A (230 VAC) Output voltage 19 VDC ± 5% Output current 7.90 A (19 VDC) Output power 150 W Efficiency ~ 88% (230 VAC) Protection Class I Safety Overvoltage proof Overcurrent proof Overload safe Overheating protection according EN62368-1 Interface (input) Connector Schuko / BS1363 / NEMA Cable length ca. 147 ± 5 cm Interface (output) Connector: 62GB-16F10-02SN Cable length ca. 115 ± 5 cm Compatibility Lizard®: RW11, RW14/RB14 Serval: RD22-FHD, RD24-FHD Dimensions [W×H×D] 204 x 49 x 90 mm (without cable fitting) Weight approx. 1.50 kg Protection class (IP-Rating) IP65
