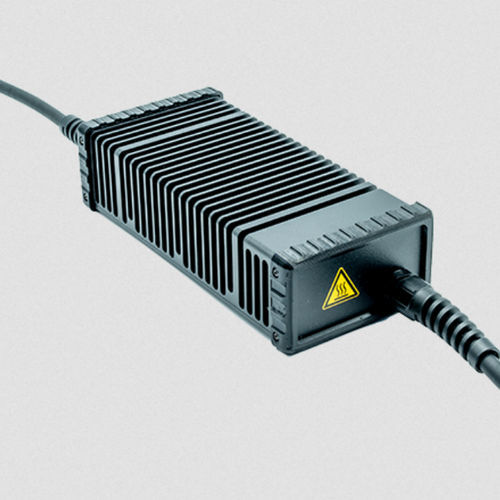

AC/DC power supply ACS90

compactadaptermobile

All over the world, mobile IT equipment such as tablets and laptops are supplied with commercially available desktop power supplies that withstand much worse environmental characteristics than the central IT equipment. With the AC adapter models ACS90 and ACS150, roda is opening a door to a new dimension in the rugged world. Water- and sand-protected, shockproof, drop- and EMC-protected, the AC adapter can also be used at the temperatures designated for IT equipment. Despite its aluminium housing, EMC filter boards and reinforced cable sheath, the full-rugged ACS90 weighs 1.5 kg with compact dimensions of 204 x 49 x 90 mm. Technical Specification Input voltage 100-240 VAC Frequency 50-60 Hz (100-240 VAC) 400 Hz (110 VAC) Input current 1.60 A (115 VAC) 0.80 A (230 VAC) Output voltage 19 VDC ± 5% Output current 4.74 A (19 VDC) Output power 90 W Efficiency ~ 88% (230 VAC) Protection Class I Safety Overvoltage proof Overcurrent proof Overload safe Overheating protection according EN62368-1 Interface (input) Connector Schuko / BS1363 / NEMA Cable length ca. 147 ± 5 cm Interface (output) Connector: 62IN-56T8-33S-622-RH Cable length ca. 115 ± 5 cm Compatibility Rocky: RT9/RK9/RF9, RK10/RF10, RK12 Panther: DR10/DK10, DR13/DK13 Lizard®: RS11/RV11, RS13 Serval: RD15-UXGA, RD15-FHD, RD19-SXGA Dimensions [W×H×D] 204 x 49 x 90 mm (without cable fitting) Weight approx. 1.50 kg Protection class (IP-Rating) IP65 Environmental specification Designed to meet MIL-STD-810G EMI Designed to meet MIL-STD-461G
