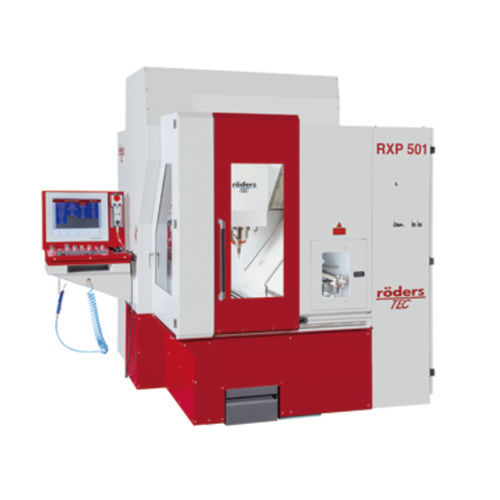

3-axis CNC machining center RXP501 verticalHSK-E4035 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40
- Number of tool stations
- 35 tools
- Other characteristics
- rigid
- X travel
600 mm
(23.62 in)- Y travel
500 mm
(19.69 in)- Z travel
300 mm
(11.81 in)- Rotational speed
42,000 rpm
(263,894 rad.min-1)- Power
14 kW
(19.03 hp)- Workpiece max height
500 mm
(20 in)- Work feed X-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
400 kg
(882 lb)- Weight
6.5 t
(7.17 us ton)- Overall length
2,450 mm
(96.5 in)- Overall width
2,800 mm
(110.2 in)- Overall height
2,520 mm
(99.2 in)
Description
Rigid Z‑axis, large choice of machining spindles
Enlarged travel in all axes
