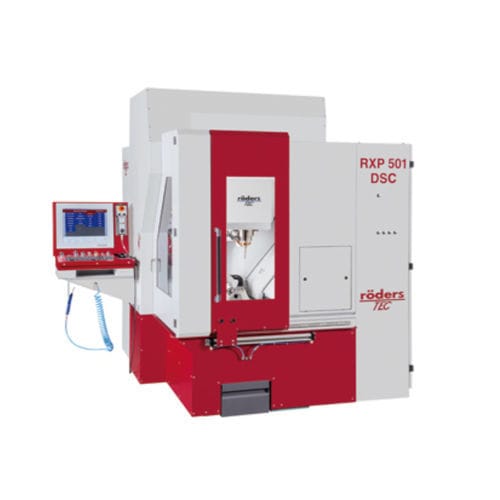

5-axis CNC machining center RXP501DSC verticalHSK-E4035 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40
- Number of tool stations
- 35 tools
- X travel
500 mm
(19.69 in)- Y travel
500 mm
(19.69 in)- Z travel
300 mm
(11.81 in)- Rotational speed
42,000 rpm
(263,894 rad.min-1)- Power
14 kW
(19.03 hp)- Work feed X-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
30 kg
(66 lb)- Weight
7 t
(7.72 us ton)- Overall length
2,450 mm
(96.5 in)- Overall width
2,800 mm
(110.2 in)- Overall height
2,520 mm
(99.2 in)
Description
C‑axis more eccentric compared to RXP501DS
Better access to workpiece for large swivel angles
With second bearing for swivel axis
guaranteeing high stiffness
No break for C‑axis
Very efficient due to high stiffness and optimum layout of the mass inertia
Two-sided support of the C‑axis for high stability and precision
High resolution optical encoders in all axes
Powerful wear-free direct drives in all axes
Special Röders 5‑axis geometry compensation for high precision, also at long lasting machining operations
Precise temperature control of the machine elements
For dynamic decoupling, the swivelling direction is at right angles to the X axis
Windows very close to the machining area, visible from two sides
Chucks for different pallet systems can be integrated into the C‑table
