5-axis CNC machining center RXP400DSC
verticalHSK-E32HSK-E 25

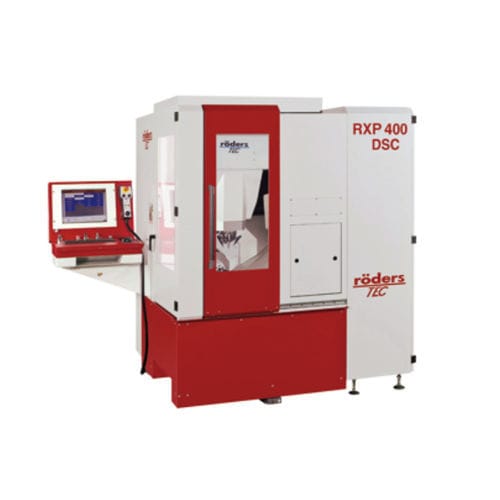

5-axis CNC machining center - RXP400DSC - Roeders - vertical / HSK-E32 / HSK-E 25
5-axis CNC machining center - RXP400DSC - Roeders - vertical / HSK-E32 / HSK-E 25
5-axis CNC machining center - RXP400DSC - Roeders - vertical / HSK-E32 / HSK-E 25 - image - 2
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Spindle mount
HSK-E32, HSK-E 25
Number of tool stations
40 tools, 16 tools, 70 tools
Applications
for molds, for small parts production
Other characteristics
high-precision, for micro-machining
X travel

310 mm
(12.2 in)

Y travel

294 mm
(11.57 in)

Z travel

210 mm
(8.27 in)

Rotational speed

40,000 rpm, 50,000 rpm
(251,327 rad.min-1, 314,159 rad.min-1)

Work feed X-axis

Min.: 0 mm/min
(0 in/s)

Max.: 42,000 mm/min
(28 in/s)

Work feed Y-axis

Min.: 0 mm/min
(0 in/s)

Max.: 42,000 mm/min
(28 in/s)

Work feed Z-axis

Min.: 0 mm/min
(0 in/s)

Max.: 42,000 mm/min
(28 in/s)

Table load capacity

15 kg
(33 lb)

Weight

3.2 t
(3.53 us ton)

Overall length

1,930 mm
(76 in)

Overall width

2,515 mm
(99 in)

Overall height

2,170 mm
(85.4 in)

Description

Large swivel range up to 135° Highly precise micro-machining Electrodes, small moulds, watches etc. Very efficient due to high stiffness and optimum layout of the mass inertia Two-sided support of the C‑axis for high stability and precision High resolution optical encoders in all axes Powerful wear-free direct drives in all axes Special Röders 5‑axis geometry compensation for high precision, also at long lasting machining operations Precise temperature control of the machine elements For dynamic decoupling, the swivelling direction is at right angles to the X axis Windows very close to the machining area, visible from two sides Chucks for different pallet systems can be integrated into the C‑table
