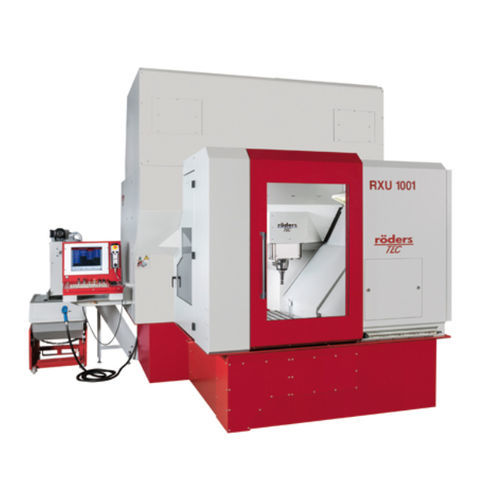

3-axis CNC machining center RXU1001verticalHSK A-6324 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63
- Number of tool stations
- 24 tools, 40 tools
- Applications
- for molds, for medical applications, for the aerospace industry
- Other characteristics
- direct-drive, high-precision
- X travel
1,000 mm
(39.37 in)- Y travel
810 mm
(31.89 in)- Z travel
500 mm
(19.69 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Workpiece max height
680 mm, 700 mm
(27 in, 28 in)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Table load capacity
2,000 kg
(4,409 lb)- Weight
19.5 t
(21.5 us ton)- Overall length
4,814 mm
(189.5 in)- Overall width
3,500 mm
(137.8 in)- Overall height
3,300 mm
(129.9 in)
Description
With QUADROGUIDE® for high roughing capacity, dynamics and precision
All axes with direct drives
Milling spindle may be chosen depending on the application, up to 101 Nm (S1) available
Ideal for forging dies, mould and die making, aerospace industry, medical applications, machine production and part manufacturing
