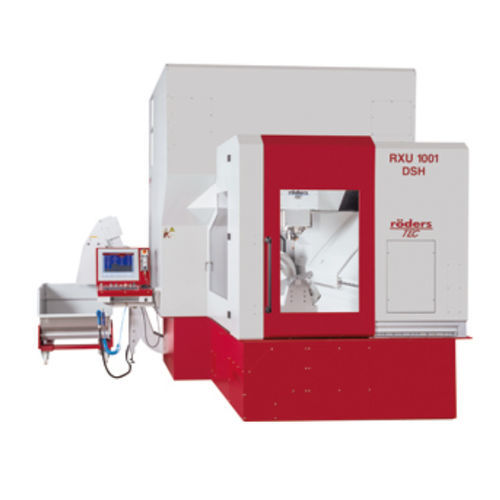

5-axis CNC machining center RXU1001DSH

verticalHSK A-6324 tools

With QUADROGUIDE® for high roughing capacity, dynamics and precision All axes with direct drives Milling spindle may be chosen depending on the appli­cation, up to 101 Nm (S1) available Compared to the RXU1000DSH the travel in X‑direction and the maximum workpiece diameter are increased, the offset of the C‑axis is higher Highly efficient due to high stiffness and optimum layout of the mass inertia Two-sided support of the C‑axis for high stability and precision Counter bearing dimen­sioned for up to 7 t load High resolution optical encoders in all axes Powerful wear-free direct drives in all axes Special Röders 5‑axis geometry compen­sation for high precision, also at long lasting machining operations Precise tempe­rature control of machine components For dynamic decou­pling, the swivelling direction is at right angles to the X axis Windows very close to the machining area, visible from two sides Chucks for different pallet systems can be integrated into the C‑table
