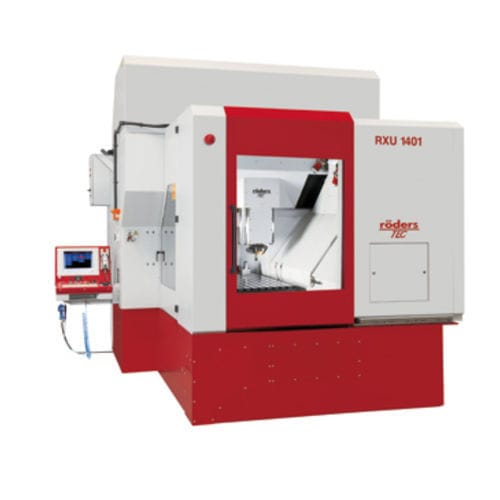

3-axis CNC machining center RXU1401verticalHSK A-6350 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63
- Number of tool stations
- 50 tools
- Applications
- for the automobile industry, for molds, for medical applications, for the aerospace industry
- Other characteristics
- direct-drive, high-precision
- X travel
1,400 mm
(55.12 in)- Y travel
1,050 mm
(41.34 in)- Z travel
600 mm
(23.62 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Workpiece max height
800 mm
(31 in)- Work feed X-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
3,000 kg
(6,614 lb)- Weight
27 t
(29.76 us ton)- Overall length
5,439 mm
(214.1 in)- Overall width
3,921 mm
(154.4 in)- Overall height
3,600 mm
(141.7 in)
Description
With QUADROGUIDE® for high roughing capacity, dynamics and precision
All axes with direct drives
Milling spindle may be chosen depending on the application, up to 101 Nm (S1) available
Ideal for forging dies, mould and die making, aerospace industry, medical applications, machine production and part manufacturing
