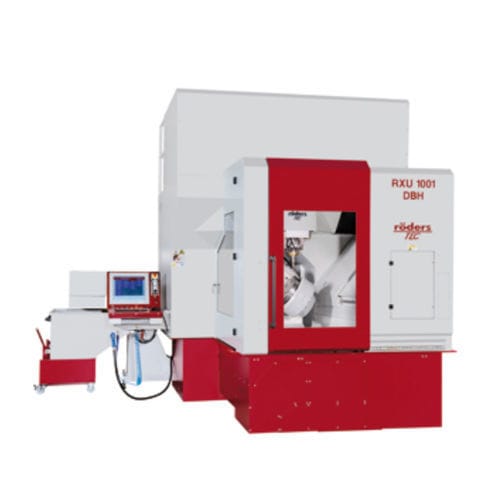

5-axis CNC machining center RXU1001DBHverticalHSK-E5024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E50
- Number of tool stations
- 24 tools, 40 tools
- Associated functions
- milling
- Other characteristics
- direct-drive
- X travel
800 mm
(31.5 in)- Y travel
855 mm
(33.66 in)- Z travel
500 mm
(19.69 in)- Rotational speed
36,000 rpm
(226,195 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 60,000 mm/min
(39 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
300 kg
(661 lb)- Weight
21 t
(23.15 us ton)- Overall length
5,300 mm
(208.7 in)- Overall width
3,500 mm
(137.8 in)- Overall height
3,550 mm
(139.8 in)
Description
Special machine design for machining BLINGS and similar workpieces from two sides in one set-up
With QUADROGUIDE® for high stability and dynamics
All axes with direct drives
Milling spindle may be chosen depending on the application, up to 101 Nm (S1) available
Special geometry and clamping of the BLING wheels on the rotary-swivel-unit for two-sided machining of the BLING wheels in one set-up
Large swivel range from +45° to ‑195°
No counter bearing for allowing a very flexible accessibility when machining the pockets between the wings of the BLING
Reinforced swivel axis for increasing the stability of the one-sided fixation of the C‑axis
Calibration of the machine geometry with the special Röders 5‑axis geometry compensation for high precision, also at long lasting machining operations
High resolution optical encoders in all axes
Powerful wear-free direct drives in all axes
Precise temperature control of machine components
