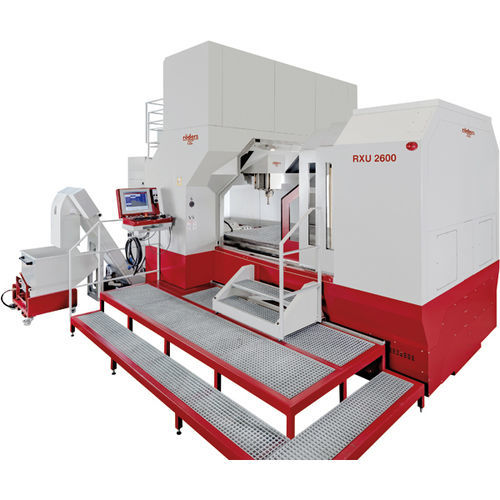

3-axis CNC machining center RXU2600verticalHSK A-6386 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63
- Number of tool stations
- 86 tools
- Applications
- for large workpieces
- Other characteristics
- high-precision
- X travel
2,600 mm, 3,000 mm
(102.36 in, 118.11 in)- Y travel
1,400 mm, 1,800 mm
(55.12 in, 70.87 in)- Z travel
800 mm
(31.5 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Workpiece max height
950 mm, 1,000 mm
(37 in, 39 in)- Work feed X-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Work feed Y-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Work feed Z-axis
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39 in/s)- Table load capacity
6,000 kg
(13,228 lb)- Weight
55 t
(60.63 us ton)- Overall length
8,015 mm
(315.6 in)- Overall width
5,224 mm
(205.7 in)- Overall height
4,400 mm
(173.2 in)
Description
High precision machine for large workpieces up to 2.6 m x 1.8 m or 3.0 m x 1.4 m
Well adapted for the combination of jig grinding and milling
All axes with direct drives
With QUADROGUIDE® for high roughing capacity, dynamics and precision
Milling spindle may be chosen depending on the application, up to 101 Nm (S1) available
Catalogs
No catalogs are available for this product.
See all of Roeders‘s catalogs
