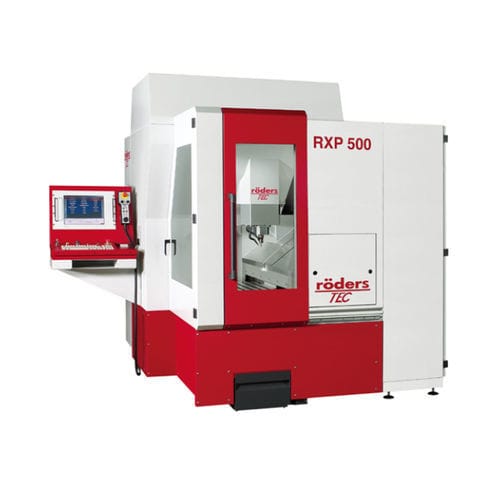

3-axis CNC machining center RXP500verticalHSK-E40HSK-E 25
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40, HSK-E 25
- Number of tool stations
- 21 tools
- Applications
- for molds
- Other characteristics
- HSC
- X travel
500 mm
(19.69 in)- Y travel
455 mm
(17.91 in)- Z travel
240 mm
(9.45 in)- Rotational speed
42,000 rpm
(263,894 rad.min-1)- Power
14 kW
(19.03 hp)- Workpiece max height
450 mm
(18 in)- Work feed X-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
400 kg
(882 lb)- Weight
6 t
(6.61 us ton)- Overall length
2,350 mm
(92.5 in)- Overall width
2,710 mm
(106.7 in)- Overall height
2,350 mm
(92.5 in)
Description
All-purpose HSC machine for medium-sized moulds and tools
Complete machining is possible in one set-up
