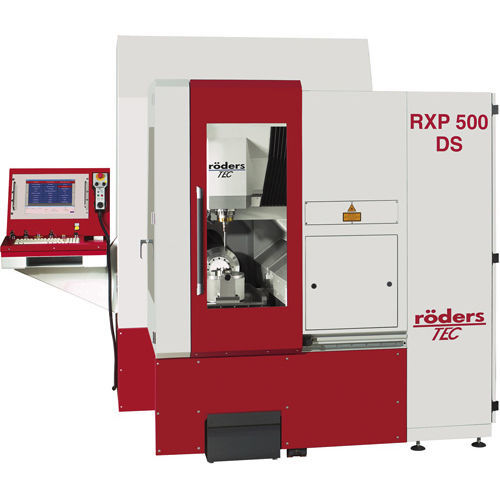

5-axis CNC machining center RXP500DSverticalHSK-E4021 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40
- Number of tool stations
- 21 tools, 35 tools
- Other characteristics
- compact, high-precision
- X travel
450 mm
(17.72 in)- Y travel
455 mm
(17.91 in)- Z travel
240 mm
(9.45 in)- Rotational speed
2,000 rpm
(12,566 rad.min-1)- Power
14 kW
(19.03 hp)- Work feed X-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Z-axis
Max.: 42,000 mm/min
(28 in/s)Min.: 0 mm/min
(0 in/s)- Weight
6.5 t
(7.17 us ton)- Overall length
2,350 mm
(92.5 in)- Overall width
2,710 mm
(106.7 in)- Overall height
2,350 mm
(92.5 in)
Description
Compact, highly dynamic, high-precision
5‑axis HSC machine
With counter bearing and special Röders geometry compensation
Very efficient due to high stiffness and optimum layout of the mass inertia
Two-sided support of the C‑axis for high stability and precision
High resolution optical encoders in all axes
Powerful wear-free direct drives in all axes
Special Röders 5‑axis geometry compensation for high precision, also at long lasting machining operations
Precise temperature control of the machine elements
For dynamic decoupling, the swivelling direction is at right angles to the X axis
Windows very close to the machining area, visible from two sides
Chucks for different pallet systems can be integrated into the C‑table
Catalogs
Floorplan RXP 500 DS
1 Pages
