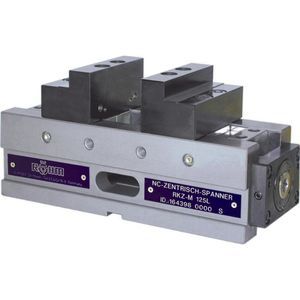

Center-clamping vise RZM
5-axis machine toolmanualscrew

Center-clamping vise - RZM - RÖHM GmbH - 5-axis machine tool / manual / screw
Center-clamping vise - RZM - RÖHM GmbH - 5-axis machine tool / manual / screw
Add to favorites
Compare this product

Characteristics

Applications
5-axis machine tool
Operation
manual
Configuration
screw
Other characteristics
self-centering, steel, compact, center-clamping, for 5-axis machining
Max. clamping force

20 kN, 25 kN

Description

Centric clamping with two moving jaws. • Steel basic body hardened and ground • Highly positioned clamping jaw • Top spindle lying near the clamping jaws for optimal force transfer • Long jaw guide and compact design • Including SKB clawed jaws • Clamping repeatability 0.02 mm Optimized for 5-axis machining. • Ideal guidance characteristics of the jaws thanks to patented guidance system • Very large clamping stroke • Open design for optimized chip flow, which permits easy cleaning, even after heavy duty machining • Constant clamping force for every clamping operation and high clamping repeatability when a torque wrench is used • Optimally suitable for use of SKB clawed jaws. These top jaws can securely clamp raw and sawed parts with a max. strength of up to 900 N/mm to a cutting depth of 2.5 mm
