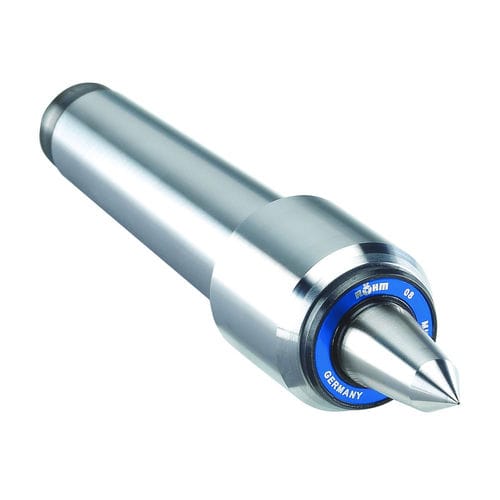

Live center Slim

for lathesfor grinding machineswith extended center point

• Compact design with minimum casing diameter. • With extended centre point. • Body hardened and ground • Tip angle 60° • For counter-clamping workpieces on turning and grinding machines. • Especially suited for cramped work area between centre point and workpiece as well as low-lying workpiece centres. • Enlarged work area and better workpiece accessibility thanks to narrow casing diameter and extended centre point • Maximum rigidity at high speeds thanks to compact design • Maximum concentricity deviation of 0.008 mm for maximum precision
